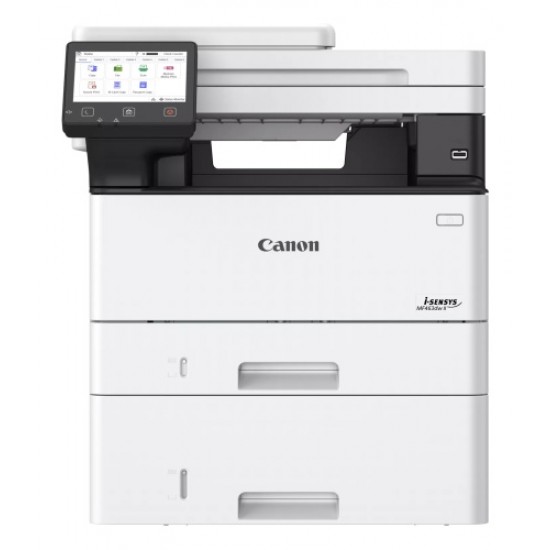

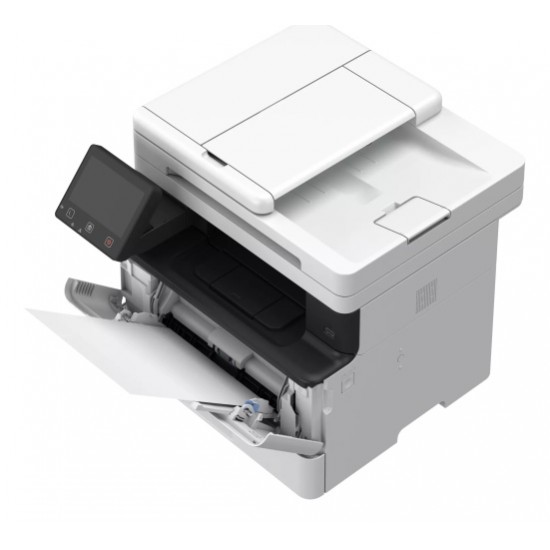

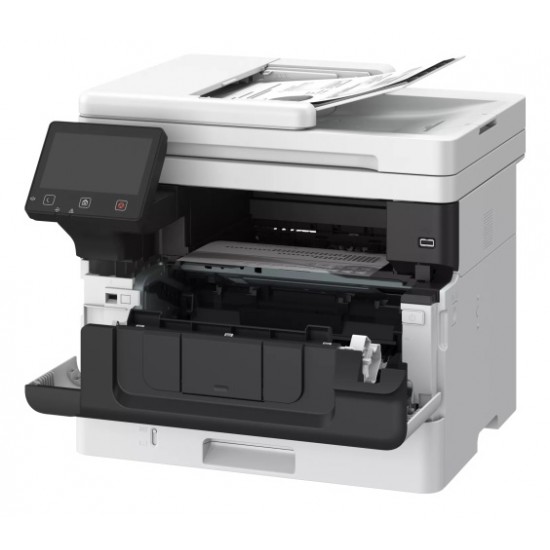

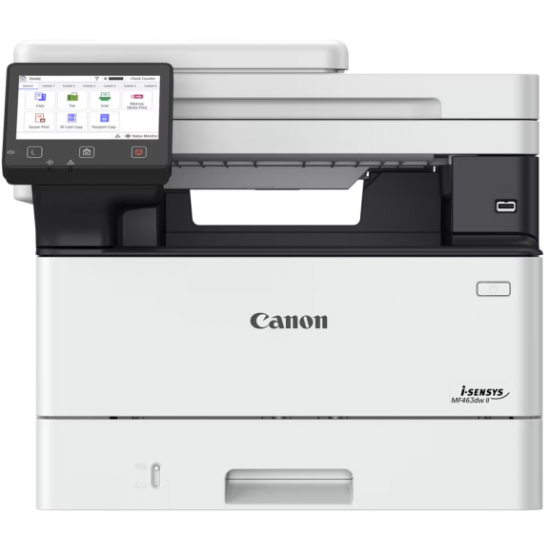

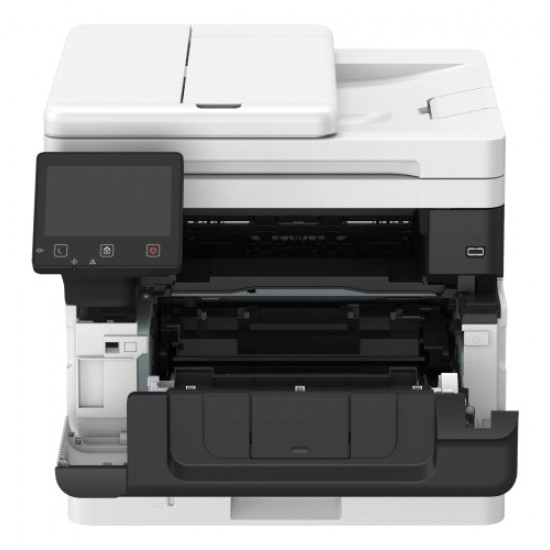

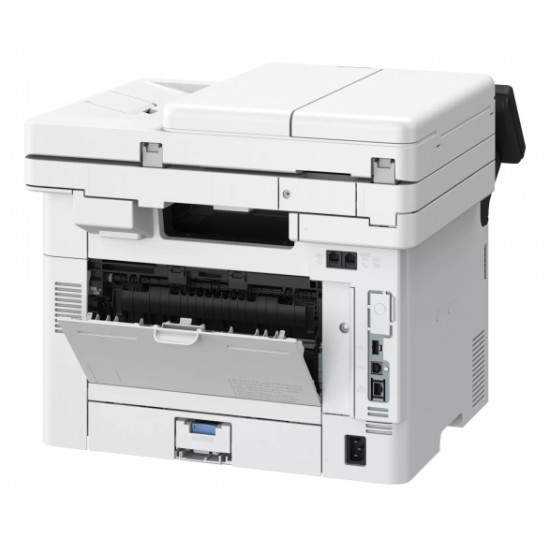

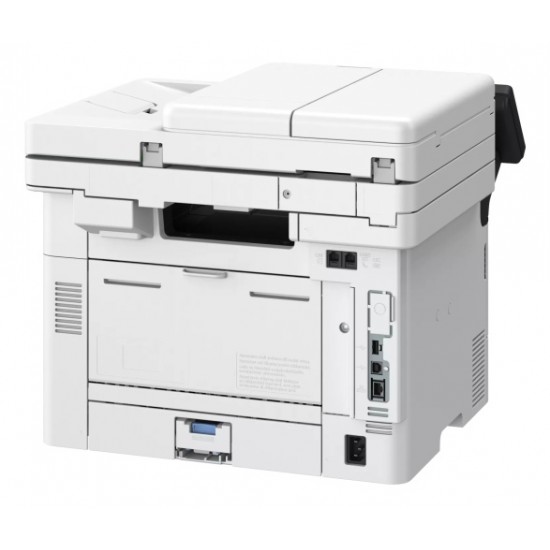

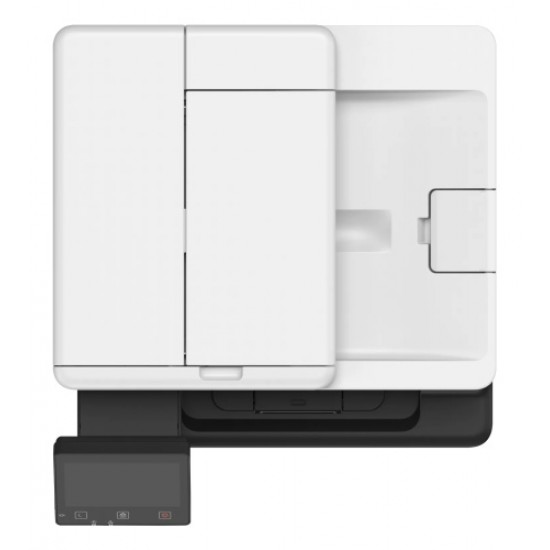

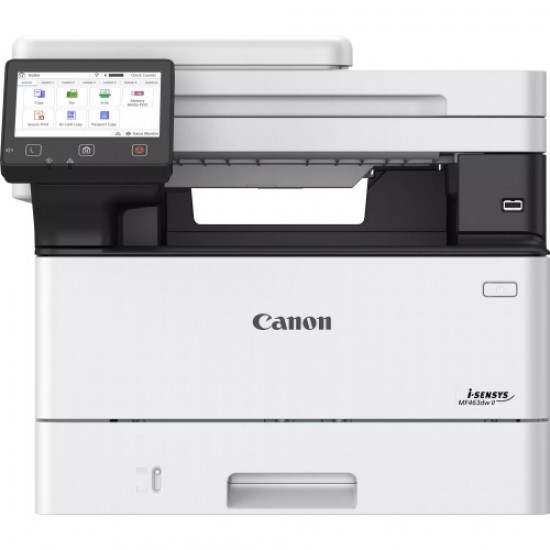

Canon i-SENSYS MF463dw II Spausdintuvas lazerinis nespalvotas MFP A4 40 ppm USB Ethernet LAN Wi-Fi

General Specifications

Machine Type

Mono Laser All-In-One

Available Functions

Print, Copy and Scan

Print Specifications

Print Speed

Single sided : Up to 40 ppm (A4)
Up to 65.4 ppm (A5-Landscape)
Double sided : Up to 33.6 ipm (A4)

Printing Method

Monochrome laser beam printing

Print Resolution

Up to 1200 x 1200 dpi

Warm-up Time

Approx. 14 seconds or less from power on

First-Print-Out Time

Approx: 5.0 seconds or less

Printer Languages

UFRII, PCL5e, PCL6, Adobe® PostScript

Fonts

45 PCL fonts
136 PostScript fonts

Print Margins

5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope)

Toner Saver Mode

Yes

Advanced Printing Features

Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon PRINT app, Canon Print Service Plug-in, IPP everywhere

Copy Specifications

Copy Speed

Single sided (A4): Up to 40 ppm
Double sided (A4): Up to 33.6 ipm

First-Copy-Out Time

Approx. 6.1 seconds or less

Copy Resolution

Up to 600 x 600 dpi

Copy Modes

Text, Text/Photo (Default),Text/Photo (High Quality), Photo

Double Sided Copying

2-sided to 2-sided (Automatic)

Multiple Copies

Up to 999 copies

Reduction / Enlargement

25-400% in 1% increments

Other Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy

Scan Specifications

Standard Type

Colour

Scan Resolution

Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi

Scan Speed

Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi)

Colour Scanning Depth

24 bit/24 bit (input/output)

Greyscales

256 levels

Compatibility

TWAIN , WIA, ICA

Maximum Scan Width

216mm

Scan to E-mail

TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b

Scan to Cloud

TIFF/JPEG/PDF/PNG

iFAX

ITU-T.37

Media Handling

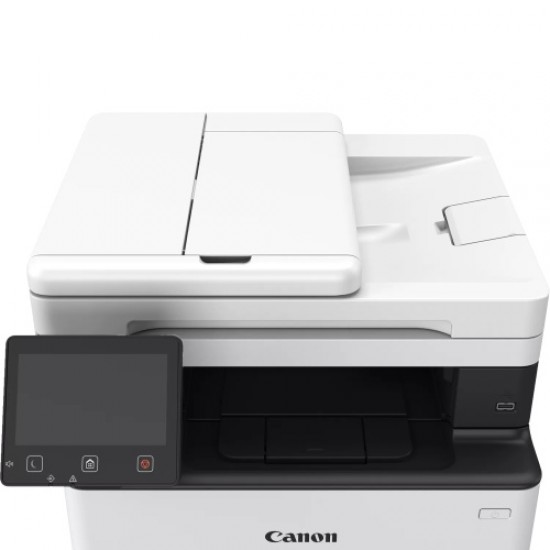

Scanner Type

Platen, 2-sided ADF (single pass)

Paper Input (Standard)

250-sheet cassette
100-sheet multi-purpose tray
50-sheet ADF

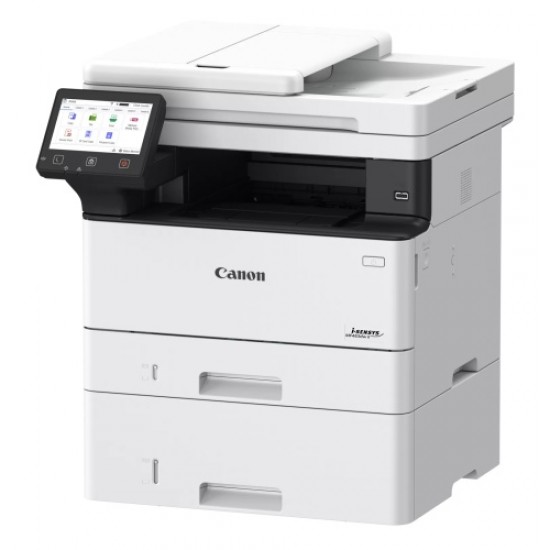

Paper Input (Option)

550-sheet cassette (Option)

Maximum Paper Input Capacity

900 sheets

Paper Output

150-sheet

Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope

Media Sizes

Cassette (Standard and optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K,
Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL),
Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

ADF:
A4, A5, A6, B5, Legal, Letter, Statement,
Custom sizes: Min. 48 x 85.0 mm Max 216 x 355.6 mm

Media Weights

Cassette (standard and optional): 60 to 120 g/m2 Multi-purpose tray: 60 to 199 g/m2 ADF: 60 to 120 g/m2

Double Sided Printing

A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m2

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics
Application Library

General Features

Recommended Monthly Print Volume

750 - 4,000 pages per month

Duty Cycle

Max. 80,000 pages per month

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Control Panel

12.7 cm LCD Colour Touch Screen

Dimensions with Trays
(W x D x H)

420 mm x 460 mm x 375 mm

Installation Space
(W x D x H)

689 mm x 1,081 mm x 824 mm

Weight

Approx. 16.3 Kg

Power Source

220-240V(±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 1,280 W
Active printing: Approx. 480W
Standby: Approx. 8 W
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC): 0.32 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/

Noise Levels

Sound Pressure:
Active: 53 dB
Standby: Inaudible

Sound Power:
Active: Duplex 68dB / Simplex 67dB
Standby: Inaudible

Consumables

Cartridges

Cartridge 070 (3,000 pages)
Cartridge 070H (10,200 pages)

Accessories & Options

Items

CST.Feeding Module-AH1 (550-sheet cassette) (Option)
